Description

This 110 GHz high performance VNA test cables are designed for your precision testing needs requiring a coaxial cable using a 1.0mm connector interface. The coax is protected with a light armoring that helps protect the small diameter cable from being damaged and improves stability during flexure. These cables have excellent VSWR and insertion loss properties and are phase stable under flexure. Each cable assembly is 100% tested and each unit comes with serialized test data. These 1.0mm cables come standard in 6 inch and 12 inch lengths with Male to Male or Male to Female configurations.

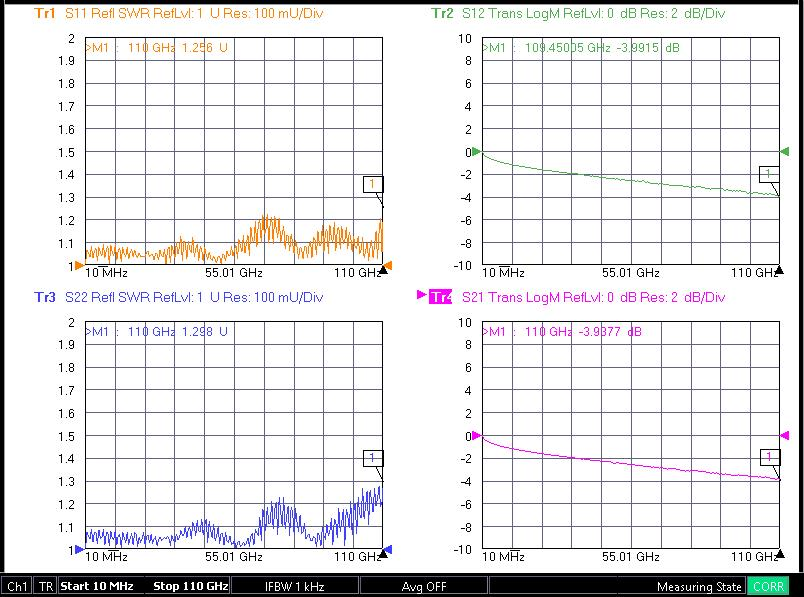

Typical Performance Data

TDN-PG-012 CAD Drawing

1.0mm Male to 1.0mm Male Precision Cable 12 Inch Length
